Description

Comfort Balancing solution

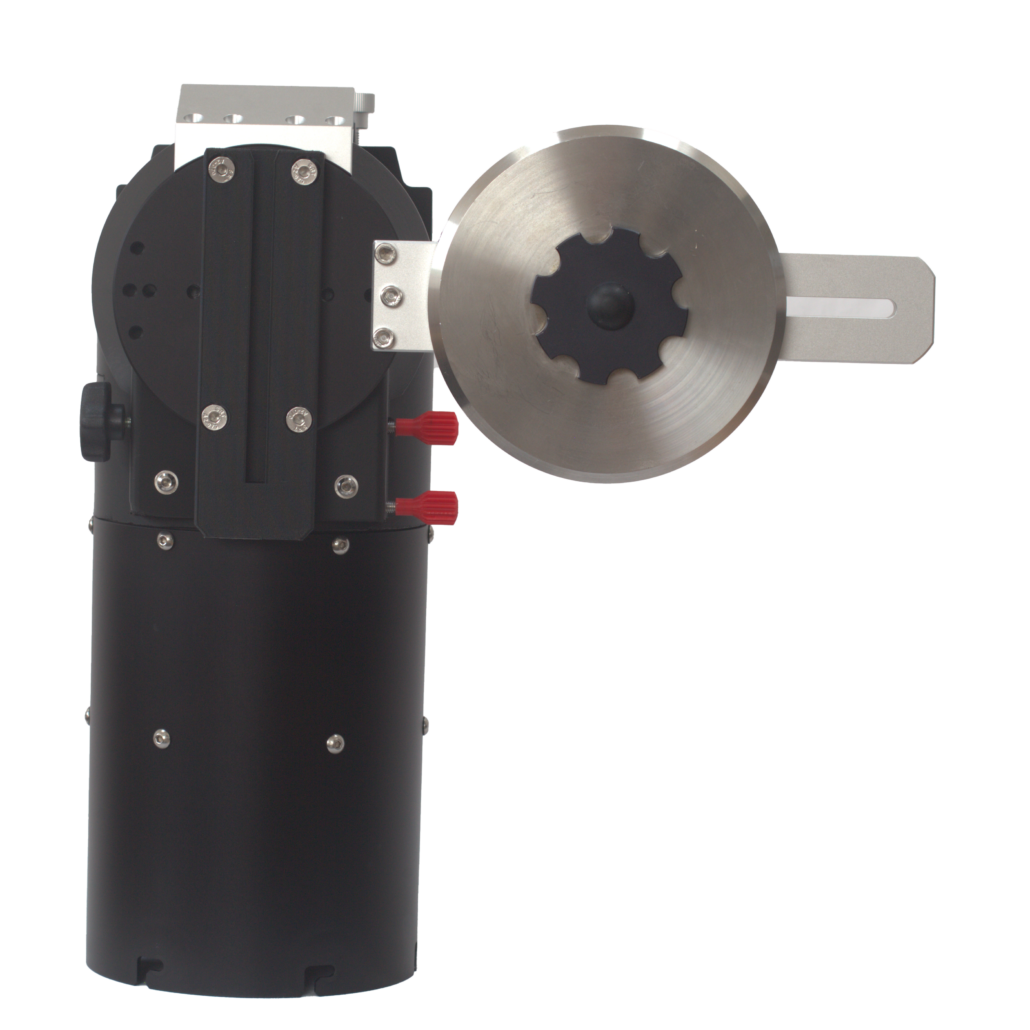

The counterweight arm can be used for the Comfort Balancing solution.

When used with a refractor/SCT/RC it is installed pointing away from the sky. When equipped with a counterweight it allows for a telescope installed on the other side of the mount head to be moved forward decreasing eyepiece height variation.

When used with a Newtonian it is installed pointing towards the sky. When equipped with a counterweight it allows for a telescope installed on the other side of the mount head to be moved backwards decreasing eyepiece height variation.

Top-mounted telescope balancing

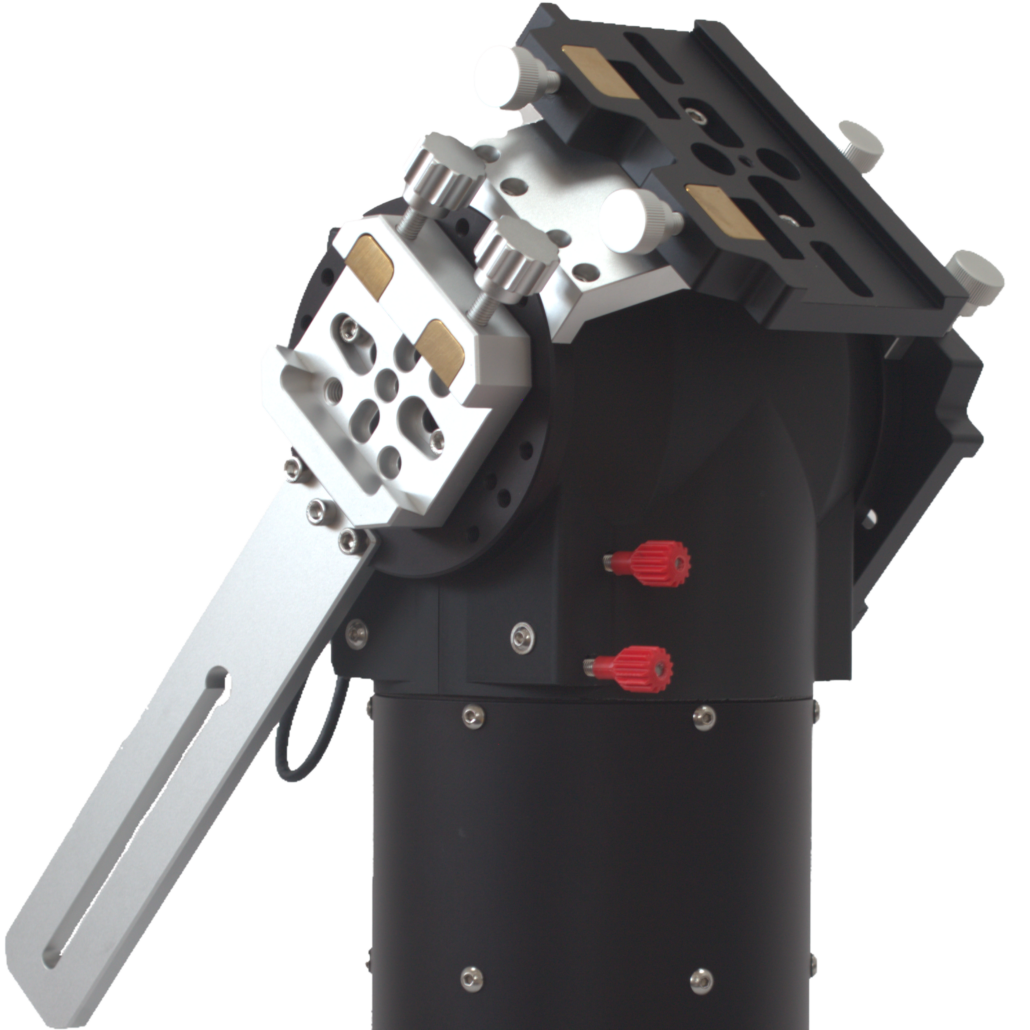

The counterweight arm can be used for balancing a top-mounted telescope. Typically two counterweight arms will be needed – one on each side of the mount head – to get a well balanced setup. It is possible to use a 4 kg counterweight on one side and an 8 kg counterweight on the other side.

Top-mounted telescope balancing – with Comfort Balancing

It is possible to install two counterweight arms for top-mounted balancing and one arm pointing backwards for Comfort Balancing. Note that this solution is less stable than side-mounting because more weight is suspended far from the rotation axis.

Easy Attachment

The Counterweight Arm for the TS-160 Panther Lite can be easily installed in multiple different configurations to make your set-up personal and well adapted for your needs.

High Capacity

The Counter Weight Arms can hold up to 2 Panther Lite Counterweights either the 4kg or 8kg version (16kg in total).
