Side mount dovetail saddle Vixen size

€ 85.00 ex.Vat | € 106.25 incl.VAT

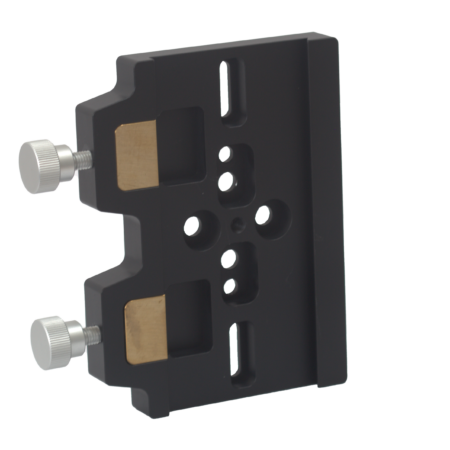

Vixen style dovetail saddle to be mounted on the counterweight arms

SKU: TTS160S Categories: , ,

Description

Two or three telescopes on the mount at the same time

Enjoy different views of the objects with more telescopes in parallel on the mount head. Place your large main telescope on the top saddle and a smaller telescope on the side of the mount head.

Installation of the saddle

This Vixen size dovetail saddle is easily installed on the counterweight arm with two screws. The magnetic holder for the handpad must be removed first.  Adjustment of the telescope pointing must be done on the telescope tube rings.

NOTE: Not all versions of the Panther mount have the necessary tapped holes for mounting the saddle. Check your mount before ordering – contact us for details.

The capacity of the Vixen dovetail saddle

The saddle will carry telescopes up to 10kg in parallel with a telescope mounted on the normal top dovetail saddle. It is possible to install telescopes on both arms at the same time. Be aware of the total capacity of the mount head.

See our shop conditions here: Our Policies

Additional information

Materials

Aluminium
Telescope Capacity

10 kg -less for large aperture telescope
Dovetail Size

Vixen style dovetail: Width 43.5mm, side angles 12 degrees
Specifications

Specifications are subject to change without notice

Included Items

  • Dovetail saddle for Vixen style dovetails
  • M6 Screws for the installation on the mount head.
